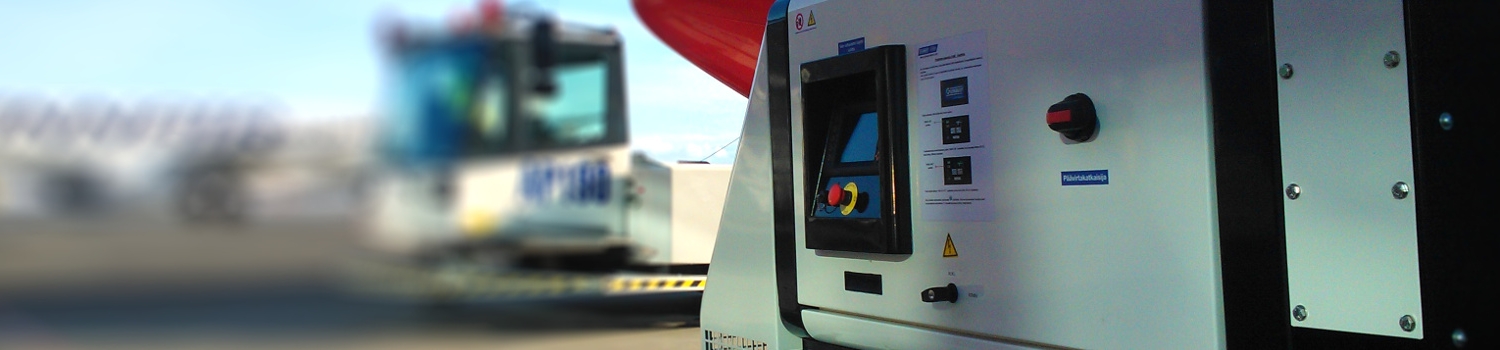

Guinault SA90, SA180– The only heavy-duty design for ramp applications in extreme conditions

SA90 and SA180 are able to convert 50Hz/60Hz current in A/C 115V/400Hz current to support narrow and wide bodied aircraft during handling, start or maintenance.

DESCRIPTION

  • Low harmonics
  • 12 pulse
  • Simple and clear control panel with very high luminosity
  • Facilitated Maintenance
  • B787 compliant
  • fixed, mobile or bridge mounted
  • Communication by CAN possible up 5 km of the converter – Modbus possible within 1km – RS232 limited to 10 m
  • Cooling system by double aspiration centrifugal fan (including sand and dust chicanes)

Pictures

TECHNICAL DATA

MAIN FEATURES

SAFETY FEATURES

  • Over/Under Voltage
  • Over Load
  • Over/Under Frequency
  • Input Electrical failures (U, I,f)
  • NBPT (No Break Power Transfer)
  • Overheat

MAIN AGGREGATE AND OPERATION

  • 12 Pulse technology for low harmonic re-injection in the mains (<9%)
  • Easy to use control panel with very High Luminosity screen VFD (text and pictures)
  • Last 1000 Defaults records (including full parameters : U, I, f, t…) for easy trouble shooting
  • Communication by CAN possible up 5 km of the converter – Modbus possible within 1km – RS232 limited to 10 m)
  • Cooling system by double aspiration centrifugal fan (including sand and dust chicanes)
  • Remote monitoring of the unit
  • Optimized vertically rising ventilation
  • Heavy duty mechanical assembly for ramp operation
  • Cable storage on each side of the unit
  • Alternative bridge, trailer and ground mounted
  • Hinged and curved doors for wide access for maintenance
  • Designed in modules for plug-play replacement
  • Indoor and outdoor use
