The Heli Loader from Flyer-Truck: FLT Heli loader 3600

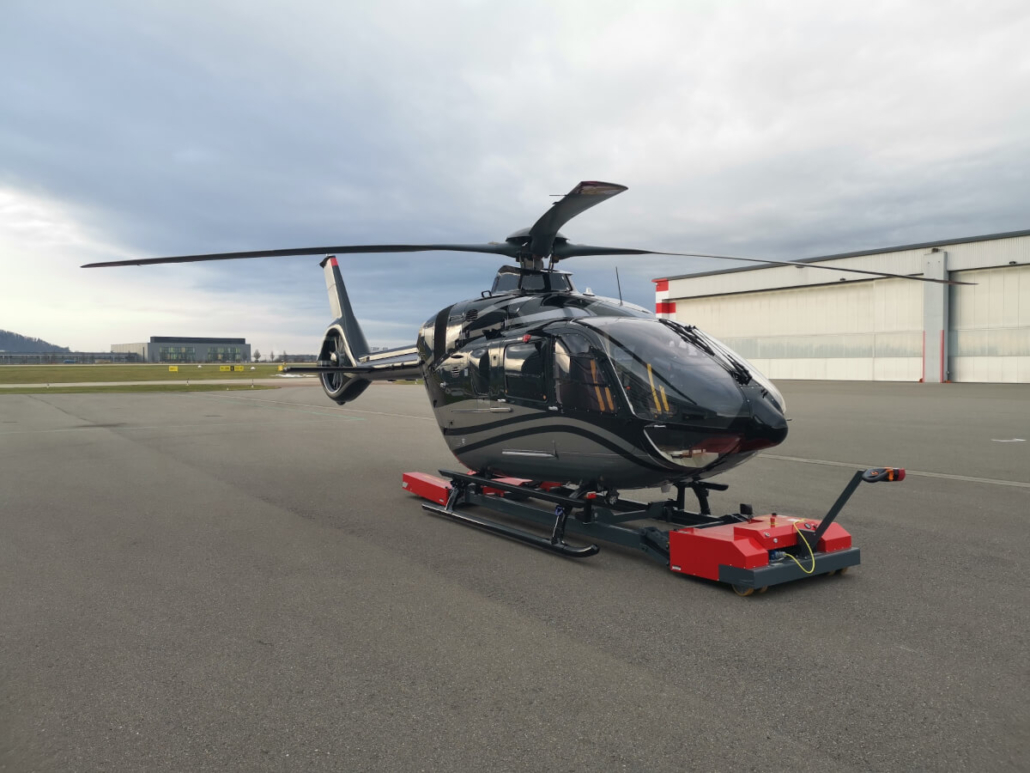

This “tug” from the German company Flyer-Truck from Mühldorf am Inn is suitable for helicopters with skids up to a maximum take-off weight of 4.5t.
The heliloader is driven by an electric motor. The lifting system has different types of attachment and thus allows maximum flexibility.
Pictures

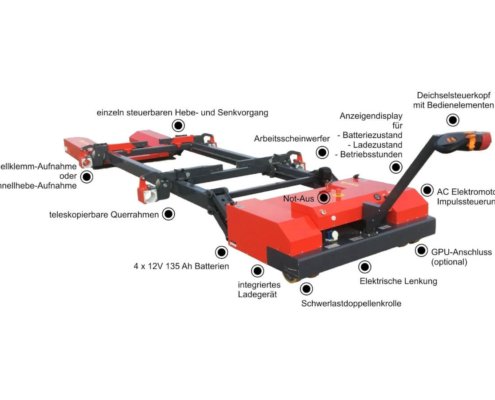

TECHNICAL DATA

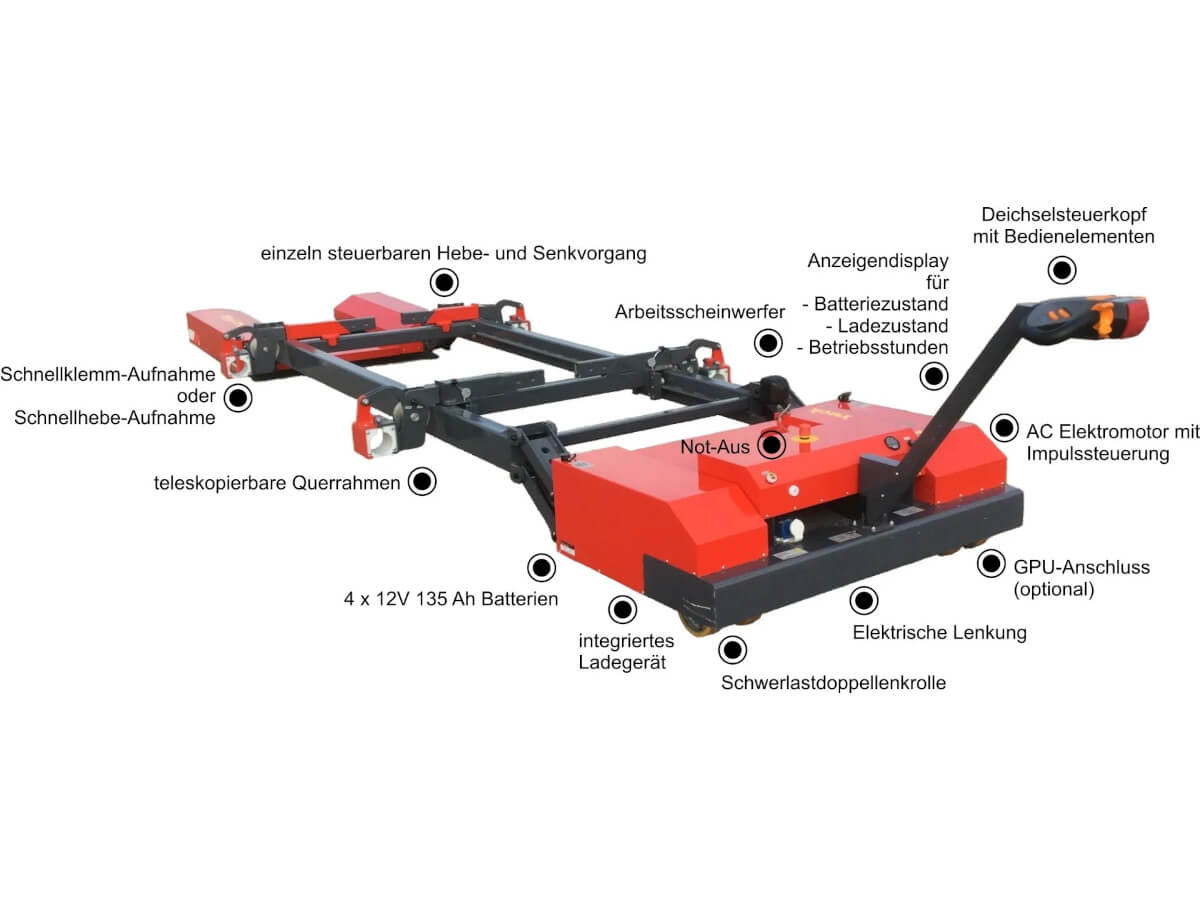

MAIN FEATURES
Drive system
Electric engine with differential axis, 24V 1.2 kW
Two drive wheels, high traction because the center of weight is introduced near of the drive axle
pulse control
Battery
4 x 12 V 135 AH lead-acid battery
Battery charger
Integrated HF charger 230/24V 18A with charge level indicator and battery sustainment function
Brake
Spring power brake magnetic 16 Nm/24V
Speed
Forward and backward:
approx. 0 – 6 km / h
Frames
For helicopter till approx. 3.600 kg/ 4.500 kg
dimensions: L x W 5.99m x 1.36m
Steering
Mechanical steering:
Heavy duty double joint wheels,
single load till 2000 kg, 360° rotatable.
Steering over a steering handle
Helicopter adapter/
hydraulically lifting system
Parallel mounting frame with four hydraulic cylinders.
Level compensation through individually controllable lifting and lowering for a need-based position of the helicopter.
Side stability through continuous and telescoping transverse frames, screenless linear adjustment.
Universally adjustable transverse frames and adapter for helicopter docking. Freely adjustable, rolls guided and quick-clamping or quick-lifting device. Skids guide with plastic adapter
Details on the helicopter lifting system

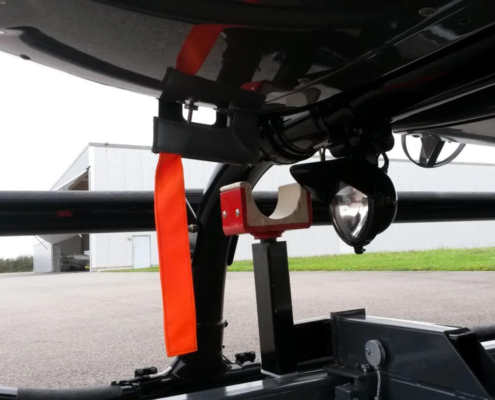

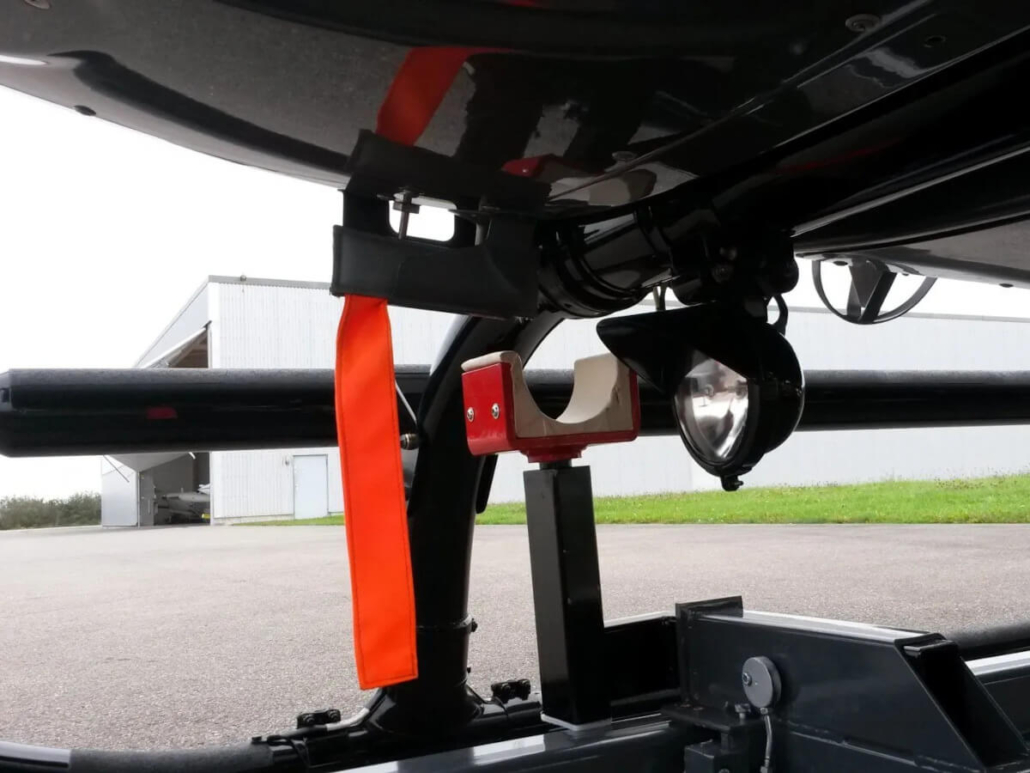

Quick release clamping mechanism
This type of lifting system is freely adjustable, roller-guided and equipped with a quick-release clamping mechanism. The runner guide is provided with a plastic holder.
Quick lifting mechanism
Also this type of lifting system is freely adjustable and roller-guided.
It has a quick release lifting mechanism. Here, too, appropriate plastic mounts are used on the runners.
Additional Equipment
- Electric steering
Double swivel castor with vertical steering knuckle guidance. Steering lever system with tie rods. Electric steering push spindle drive, steering is via rocker switch on the steering horn - Remote Control
Radio remote control with 2 joysticks (forwards and backwards / left – right)
Control buttons for lifting systems, fast and creep speed, safety operation
Adapted for example for:
- Airbus Helicopters AS350, EC120, EC130, EC135, H135, EC145, H145, BK117
- Bell B206B, B206L, B407
- Agusta A119
