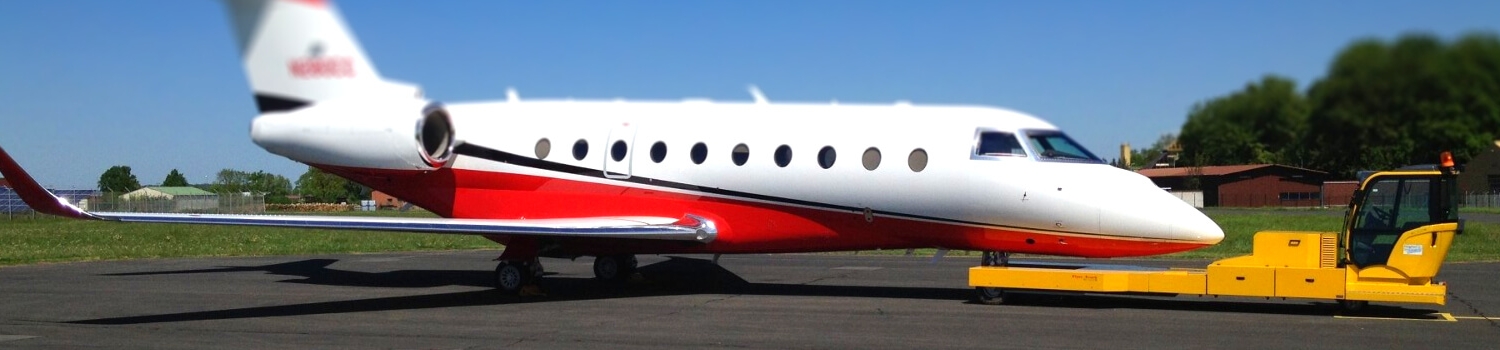

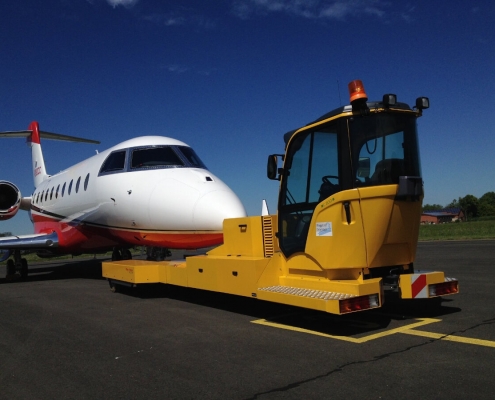

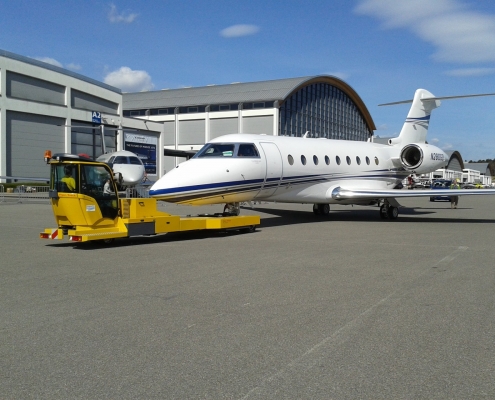

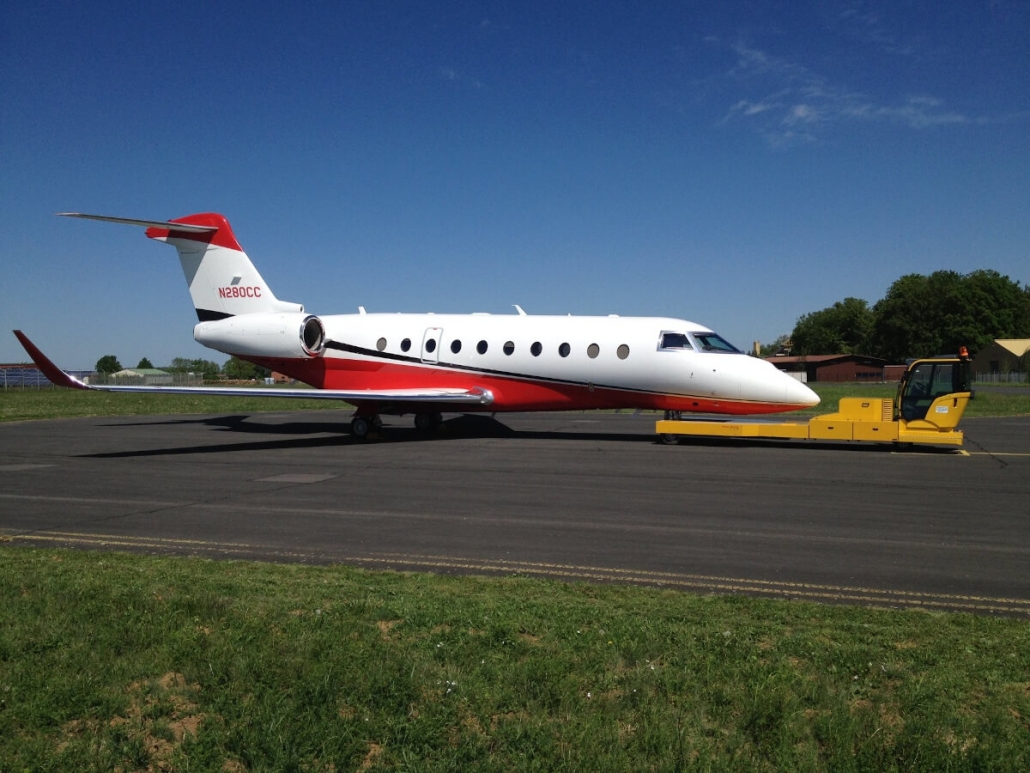

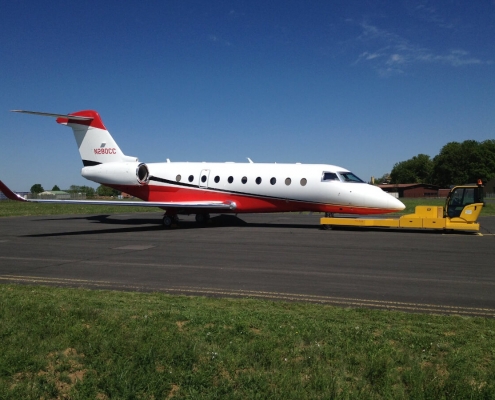

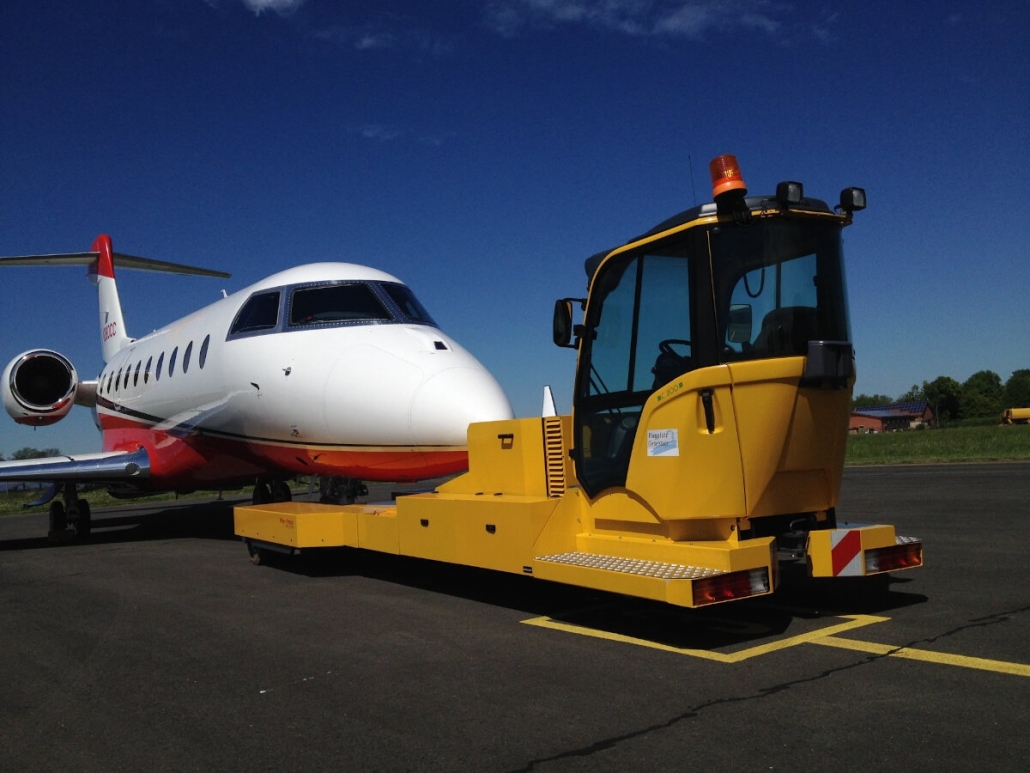

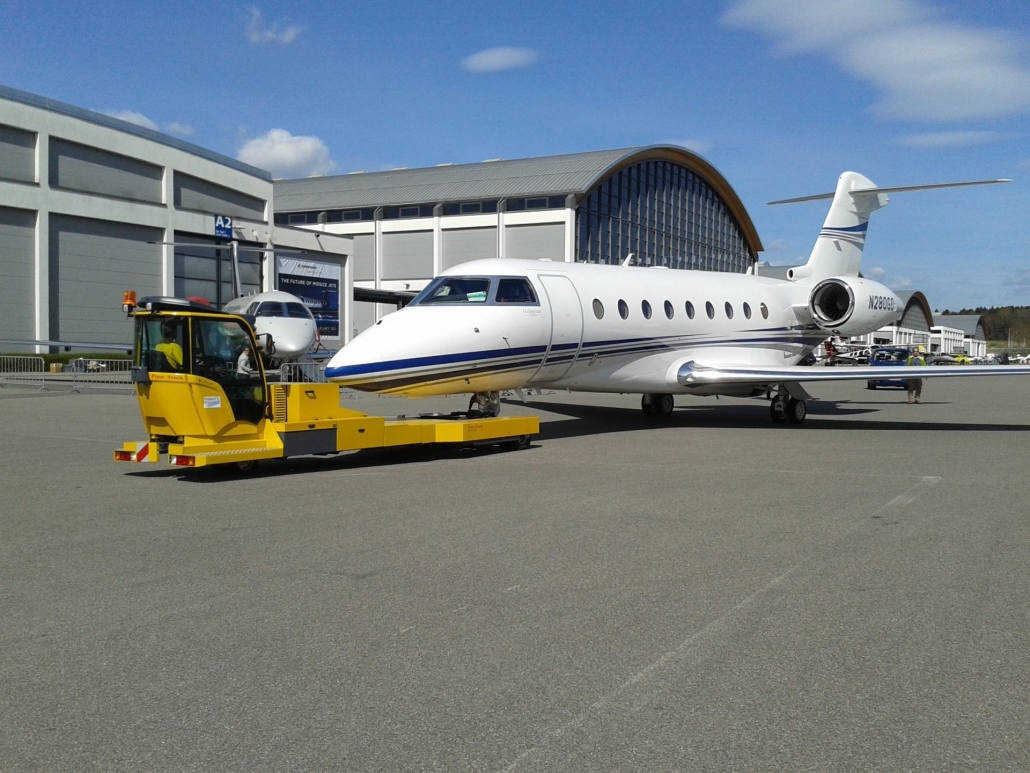

The FlyerTruck C200-400 electro is adapted for aircrafts and helicopters up to 40.0 t. max. take-off weight
Pictures
TECHNICAL DATA

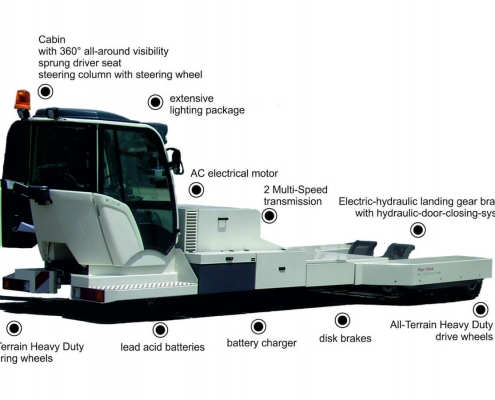

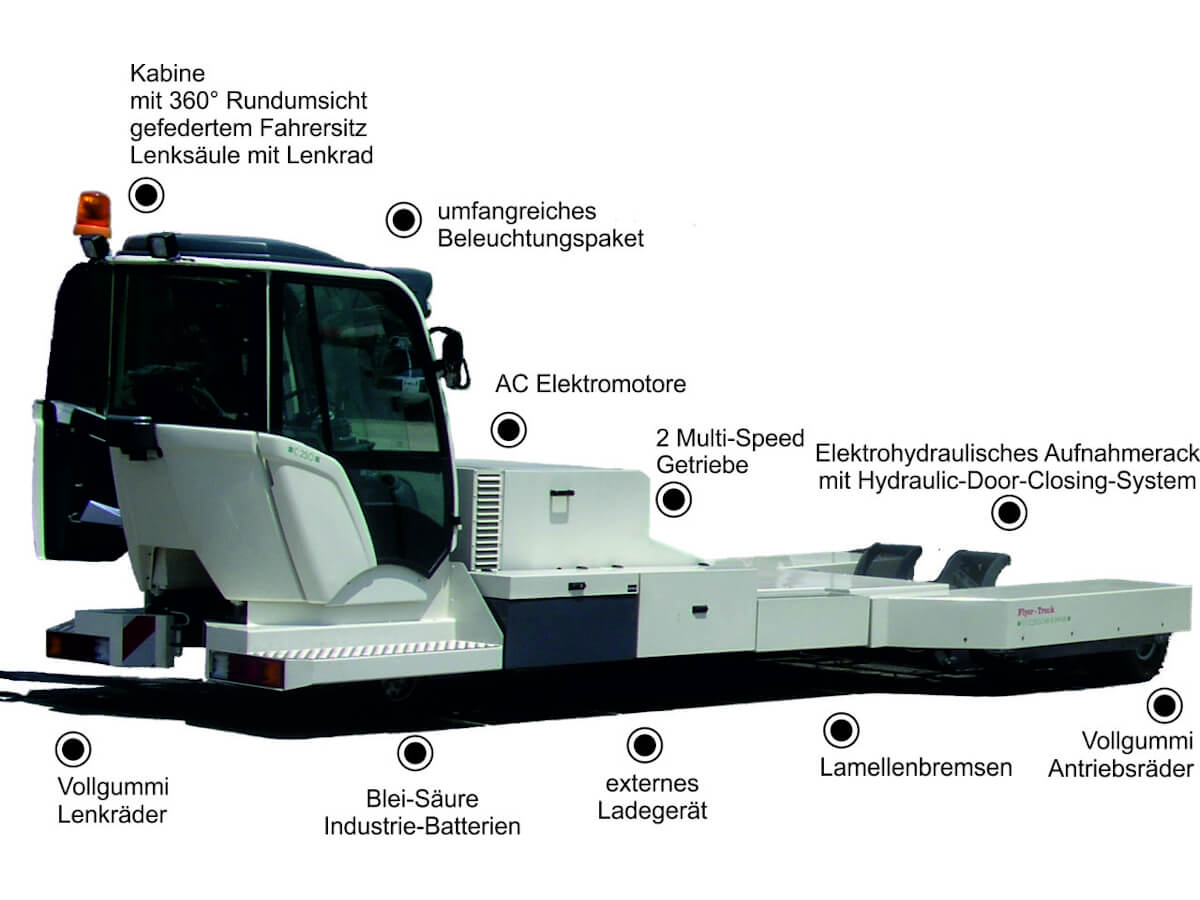

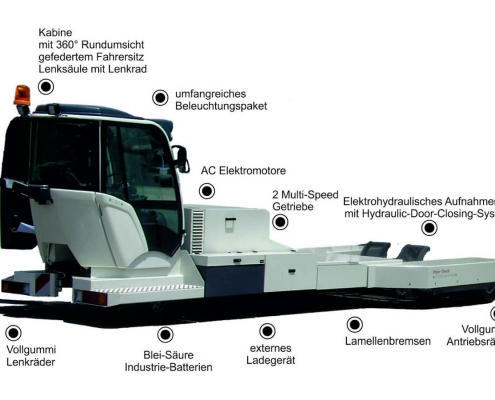

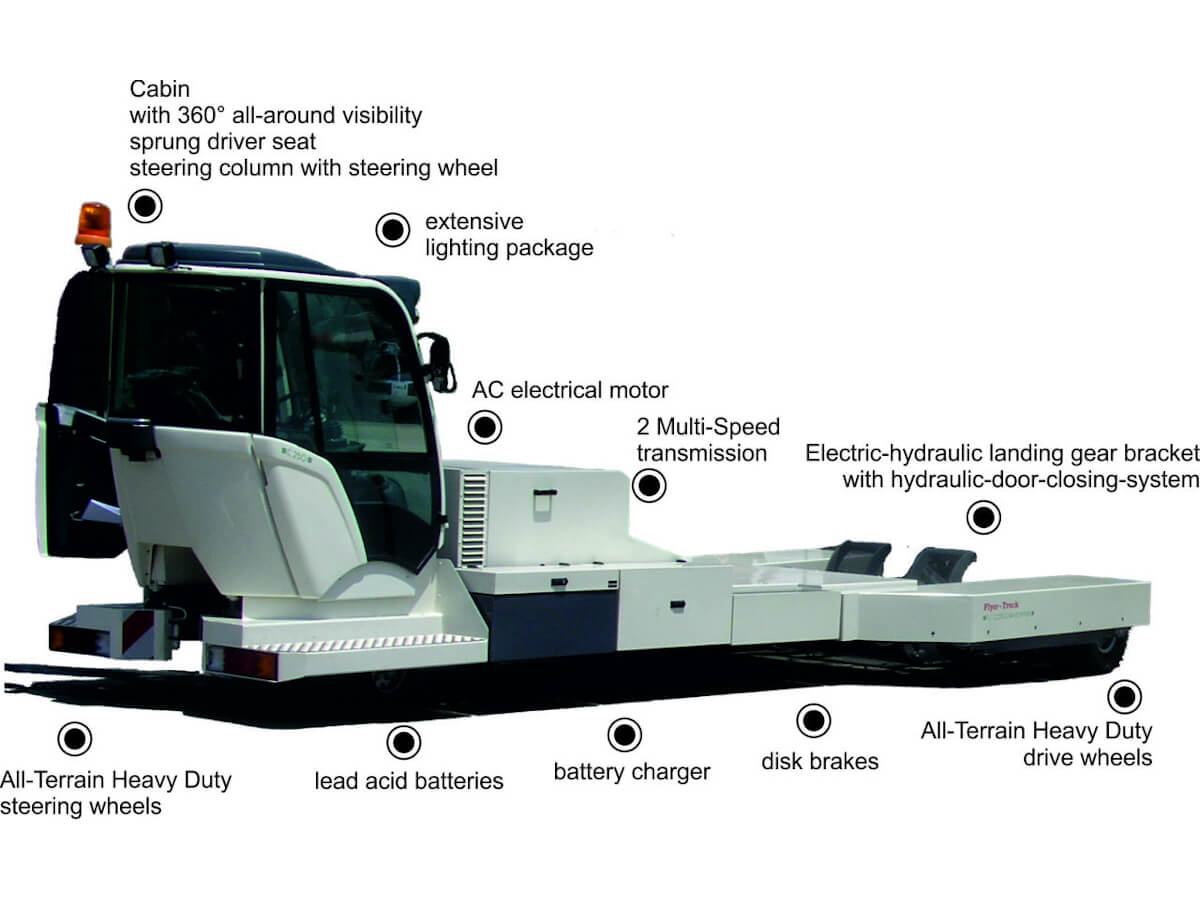

MAIN FEATURES
Drive system
2 AC drive motors each 48V, 7.5 kW
transmission PMS
Battery
lead-acid batteries 48V 640Ah
Battery charger
HF charger 230/48V 120A with charge level indicator
Brake
Hydraulic oil-multi-disc brake, low-wear in the drive gear,
parking brake multi-disc brake
Speed
Forward and backward:
approx. 20 km/h
Frame
Loading weight: 4000 kg,
for aeroplanes approx. 40.0 t MTOW
weight empty: 3.650 kg
Steering
Pulse contact control
Synchron and permanent steering
electro-hydraulic steering operated by steering wheel

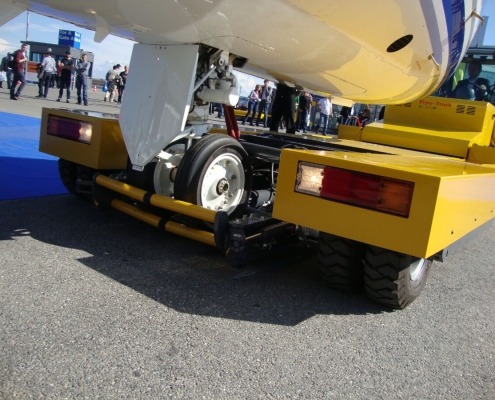

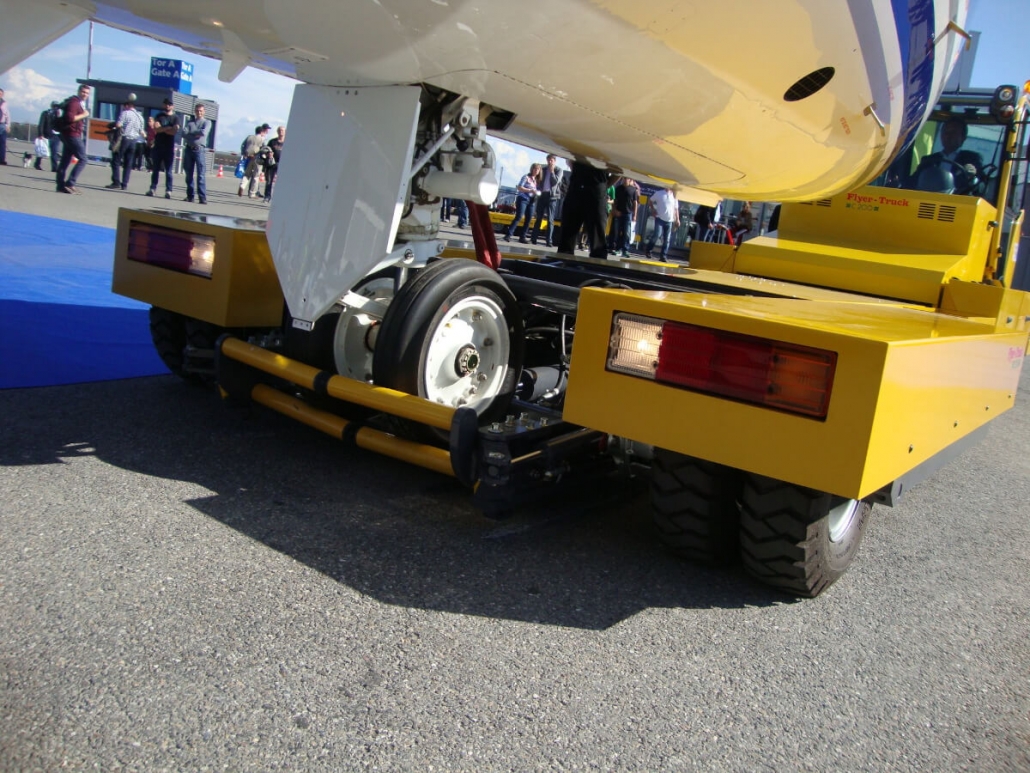

Landing gear bracket
Universal receptacle for double front landing gear, up to width tire 570 mm, with hydraulic front gear wheel hold system, hydraulic door closing system
Tire
Drive wheels: 23 x 9-10 Solid Tire
Steering wheel: 16 x 6-8 Solid Tire
Lighting / Safety
- 2 emergency stop
- Driver, movable working and safety lights
- Safety up turn light on top
- Windshield wipers in the front and rear with wash
- Heating
- Signal horn
- Fire-extinguisher
Adapted for
Beechcraft, Cessna, Challenger, Embraer, Falcon, Gulfstream, Hawker
