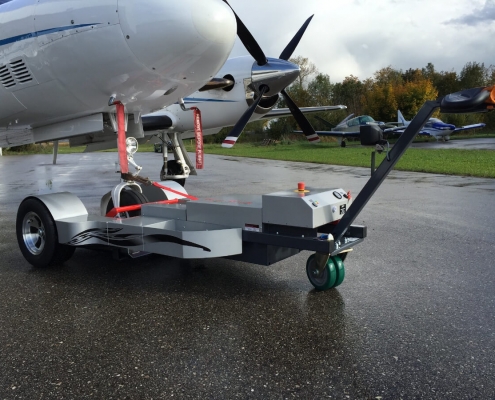

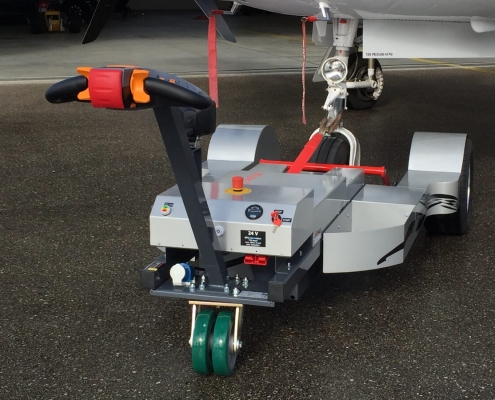

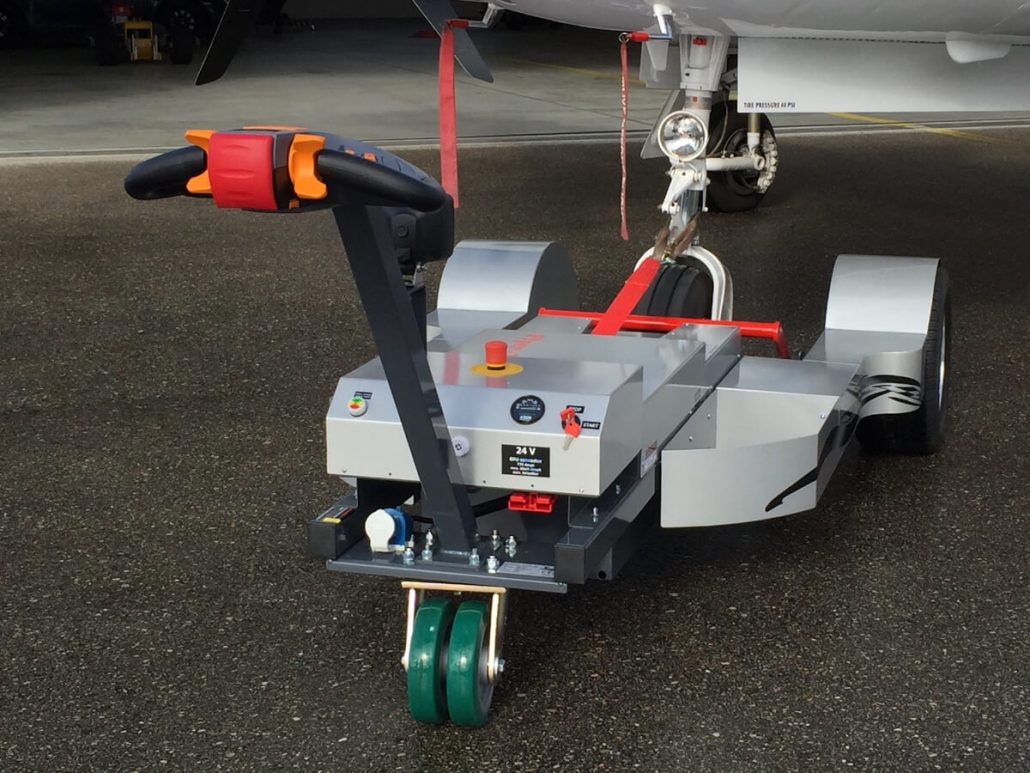

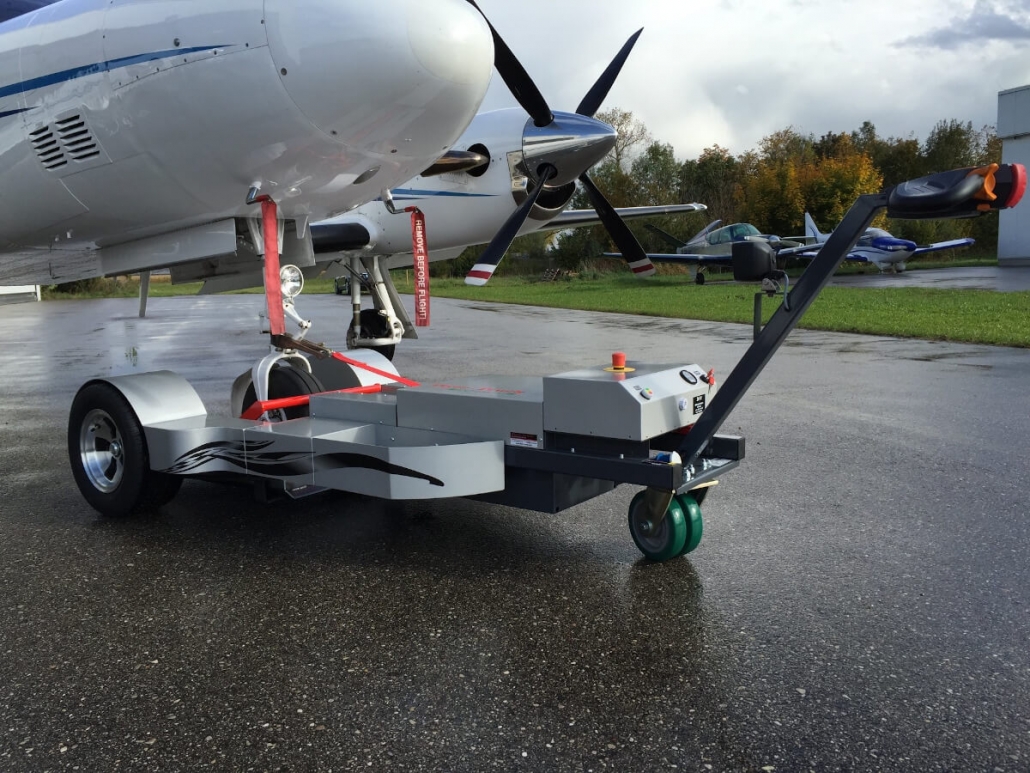

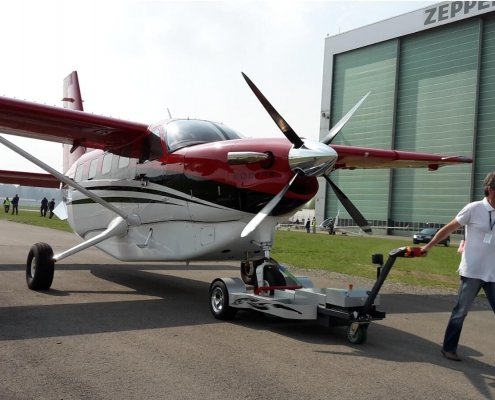

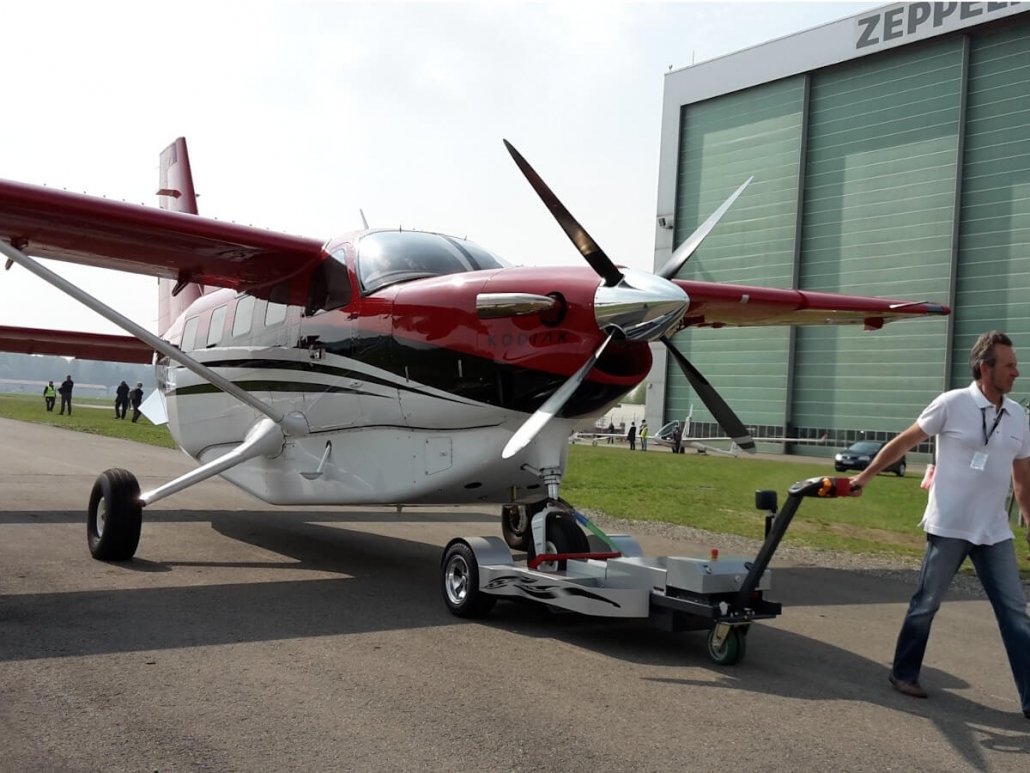

Flyer-Truck FLT 120 electro is an aircraft tractor for medium business jets up to 13.0 tons MTOW. An all-rounder for single and double nose wheels.
The aircraft tug combines the requirements of value stability, simple operation, flexible use without mechanical rebuilding measures and high-quality processing
Pictures
TECHNICAL DATA

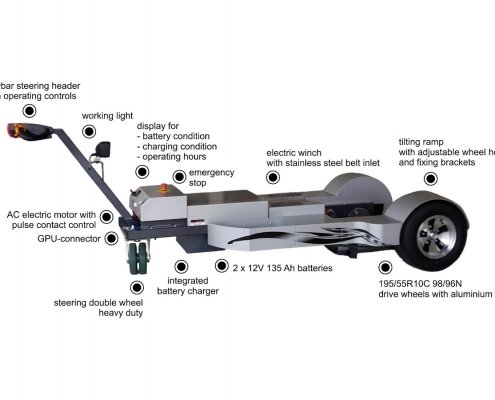

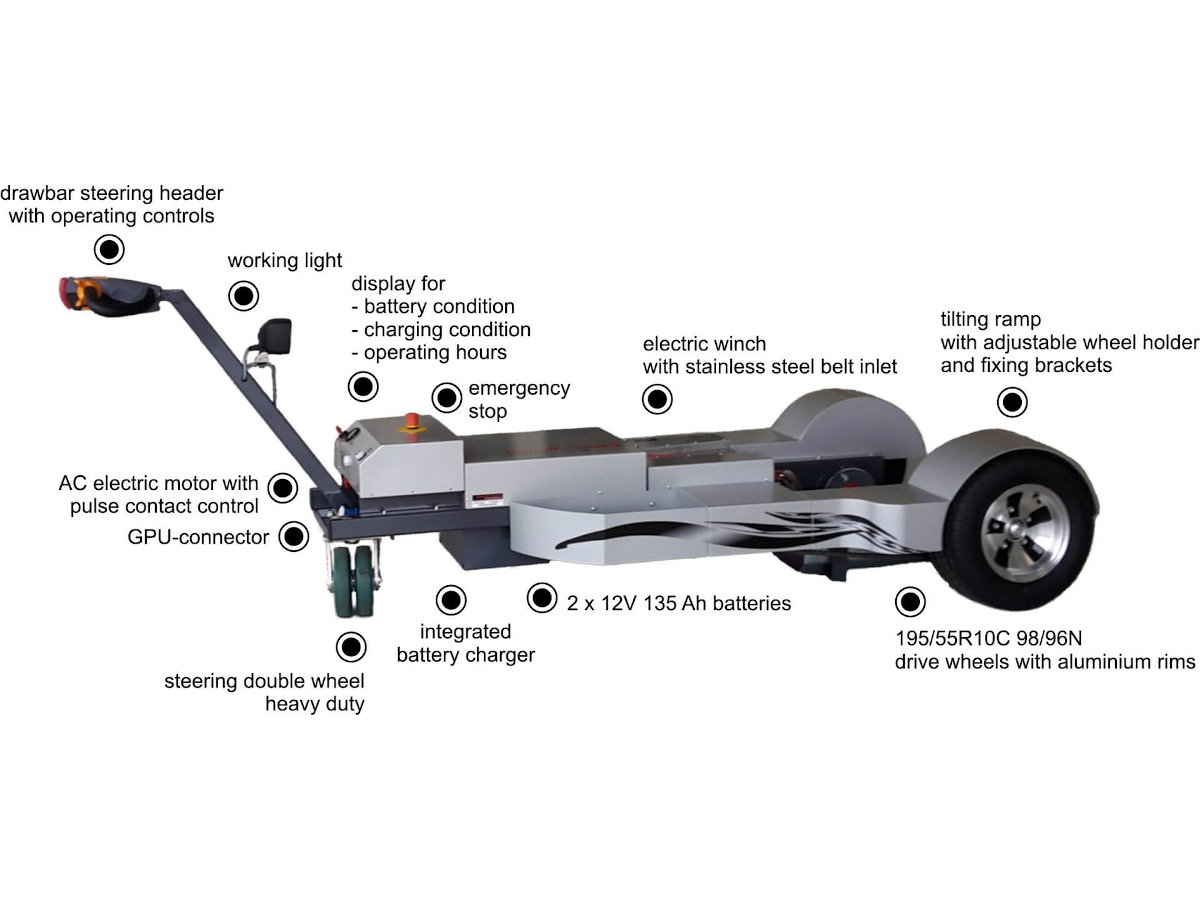

MAIN FEATURES
Drive system
Electric engine AC 24V 1,8 kW
Differential axis TX1
Pulse contact control
Battery
2 x 12V 135 Ah (C20)
Battery charger
HF Charger 230/24V 18A 50 Hz with charge level indicator incl. adapter cable 230V 1,0m (charging cable)
Brake
Spring power brake magnetic 16 Nm/24V
Speed
for- and backwards:
Step 1: approx. 0-2 km/h
Step 2: approx. 0-4 km/h
Frames
loading weight: max. 1800kg, for airplanes approx. 13,0 t MTOW
weight empty: 328 kg
dimension: L x B 3,00 x 1,24
Steering

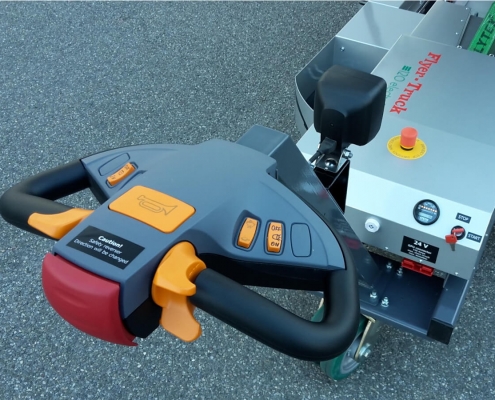

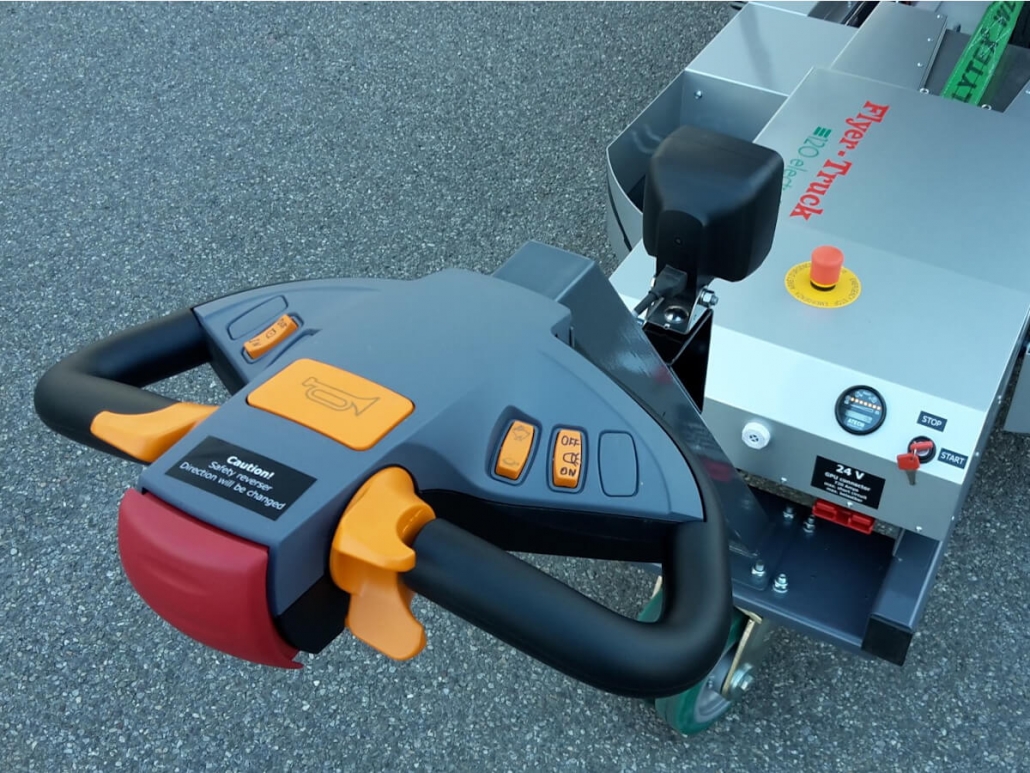

Drawbar steering header Plastic case with driving switches, fast and creep speed, signal horn
Landing gear bracket
Electric hydraulic landing gear bracket with powerful belt winch and a mechanical safety pin, the aircraft isn’t moving during the docking
Tire equipment
Double steering wheel, heavy dutyDrive wheels 195/55R10C 98/96N
Additional equipment
- working light
- open storage boxes
- Extern GPU connector 24V
- GPU cable
Adapted for
Beech Bonanza 33, 36, Baron 58, Beech Jet 400, 400 A, Beech King Air 90, 200, 250, 350, Beech, Premier 1, Cessna Caravan I, Golden Eagle 421, Cessna Citation II, Citation Jet CJ1+ – CJ4, Mustang, XLS+, Cirrus Jet, Daher TBM 700, 850, 900, 930, Dornier Do 228, Eclipse 500, Hondajet, Learjet 31, 36, 40 60, 75, Phenom 100, 300, Piaggio P.180 Avanti, Pilatus PC-12, 24, Piper PA 46, Cheyenne I/II, Saab 340
